Product Specification:

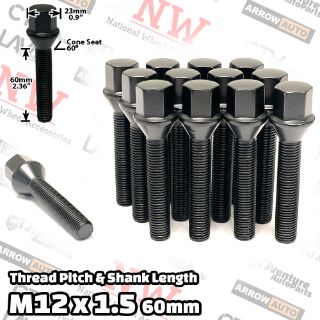

About Lug Bolts (For Aftermarket Wheels Only)
Lug Bolt Type: Conical Seat Lug Bolts
Lug Bolt Thread Pitch: M12x1.5
Lug Bolt Seat Type: Conical Seat 60 Degree
Lug Bolt Drive: 17mm Hex
Lug Bolt Shank Length: 2.36” (60mm) Extended
Lug Bolt Flange: 0.9”(23mm)
Lug Bolt Finish: Black
Lug Bolt Material Made: SCM Steel
Requirements of the Vehicle Specification
Required Vehicle Hub Stud Thread: M12x1.5
Requirements of the Wheel Specification
Required Vehicle Wheel Lug Bolts Seat Type: Conical Seat
Required Vehicle Wheel Lug Bolts Flange: 0.9” (23mm)
Wheel Spacers Capability : 30-35mm
Requirements of the Wrench Size :
Required Wrench Socket Size: 17mm Hex
What You Will Receive:
16 pcs Wheel Lug Bolts
Important Notes
Car Model and Year Only Determine Factory Hub Thread
Different Wheels Require Different Types of Lug Bolts
Compare Your Lug Bolts Shape Dimension Before Buying
For Measurement Guides, Purchase Helps, Customer Supports, Warranties, And More Details, Please Check at the Bottom Section of the Website Page.
